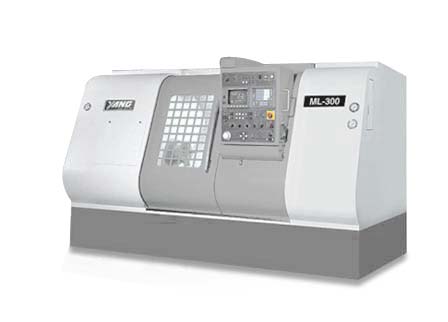

Heavy Duty Linear Way - ML-300
Lathes M-seriesML-300

High Quality Cast Iron Frame

  • The high quality fine grain massive cast iron structure guarantees the overall machine stability, vibration dampening and long-term accuracy.

High Capacity Cartridge Spindle

  • YANG's four-bearing spindle design and advanced cooling system improves cooling and decreases thermal deformation while withstanding high axial and torsional forces.

Premium Linear Guideways

  • Premium heavy-duty high quality linear guideways provide rapid traverse rates of 1181 ipm, rugged machining yet precise positioning.

Powerful Quiet Headstock

  • Powerful torque output at low spindle speeds results from a direct drive alph P-type motor using wide-angle, parallel V type belt to power the spindle. The sleek spacious headstock design allows for quick easy belt maintenance and better air circulation to decrease thermal deformation this simple direct drive design eliminates vibration, noise and heat.

Quick Hydraulic Tool Turret

  • The parallel twin-cam indexing design, coupled with the hydraulic motor, base gear and coupling achieves reliable rigid fast tool changes. The result is tool-to-tool change times of 0.3 seconds and repeatability of 0.00012 inches. Coolant through the tool holder improves tool performance, accuracy and surface finish by correctly delivering coolant to the proper point.

High Speed, High Precision, Ballscrews

  • To increase accuracy, rigidity and service life, YANG's ballscrews are hardened and ground. These ballscrews are anchored at both ends and ball nuts are pretension to eliminate backlash and minimize thermal distortion.




SPECIFICATIONS                                                               Unit:mm(Inch)

ITEM

SPECIFICATION
ML-300
Capacity

Swing over bed
600 (Ø 23.62)

Diameter × length
Ø 300 × 600 (Ø 11.81 × 23.62)

Max. diameter
Ø 380 (Ø 14.96)
Machine Body

Slant angle of bed

45°

Max. travel range of Z/X axis

600 / 240 (23.62 / 9.44);

Servo motor of Z/X axis

Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm;
X-axis: FANUC 2.8 kW (4 HP) /3000 rpm

Rapid traverse rates of Z/X axis

30 / 30 m/min (1181 / 1181 ipm)

Distance of spindle front bearing bore

STD: Ø 110 (Ø 4.33); OPT: Ø 120 (Ø 4.72)

Diameter of spindle bore/Draw bar bore

STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04);
OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03)

Spindle nose type

STD: ASA A2-6; OPT: ASA A2-8

Taper of spindle bore

Spindle motor of Z/X axis

Z-axis:αP30 polymath 15/18.5 kW (20/25 HP);
X-axis:αP22 polymath 11/15 kW (15/20 HP)

Spindle speed

STD: 8” chuck 3500 rpm;
OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm

Chuck diameter

STD: Ø 8” ; OPT: Ø 10”

Hydraulic Tailstock

Quill diameter

Ø 85 (Ø 3.34)

Tailstock travel

465 (18.3)

Center type

Live

Center taper

MT. No.4

Center stroke

150 (5.9)

Tools Turret

Type

Vertical

VDI

Live Tooling

Tool stations

OPT: 8

STD: 10

OPT: 12

STD: 8

OPT: 12

STD: 8

OPT: 12

Boring bar holder

4

5

6

4

6

2

3

External tool holder

-

-

-

2

4

2

4

Internal holder

2

2

2

2

2

1

2

Radial power tool (PRR)

-

-

-

-

-

1

1

Axial power tool (PRR)

-

-

-

-

-

2

2

Drive Motor

Tool shank

□25 × 25 (□1 × 1)

Coolant motor

860 W (1.15 HP)

Hydraulic motor

1.5 kW (2 HP)

Chip conveyor motor

215 W (1/4 HP)

Miscellaneous

Power requirement

208-220 Volts / 100 Amps / 3 Phases / 60 Cycles

Height from floor to spindle

950 (37.4)

Height from bed to spindle center

320 (12.6)

Floor area (L × W × H)

4080 ×1675 × 1842 (160.62 × 65.94 × 72.51)

Net weight (approx.)

4800 kg (10560 Ibs)

Gross weight (approx.)

5200 kg (11440 Ibs)
․Specifications are subject to change without notice
