Linear Way - SL-200

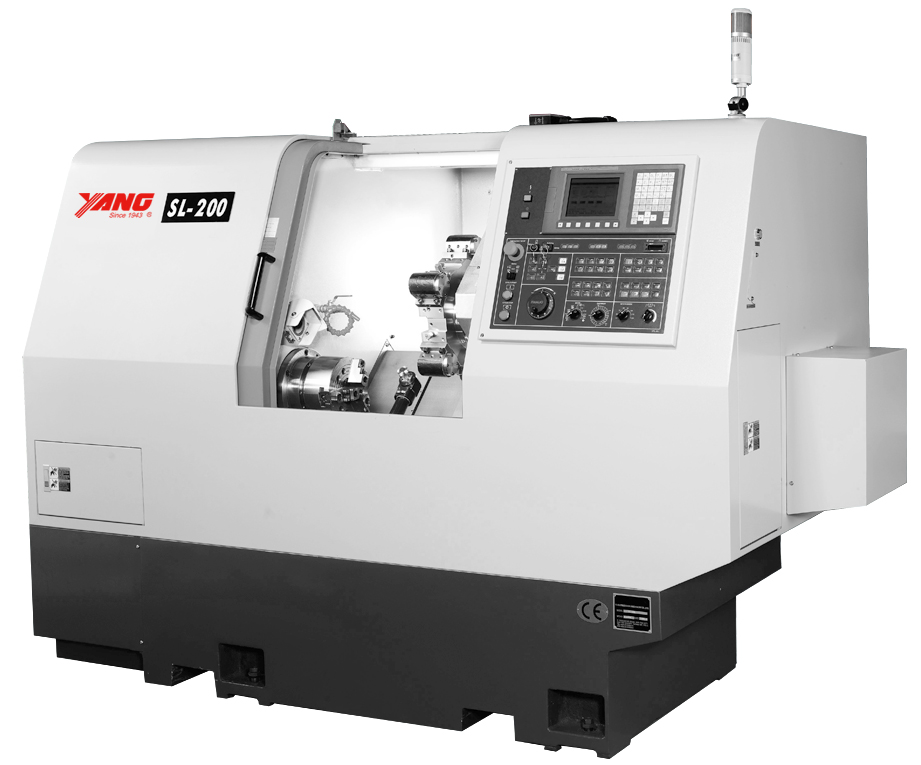

SL-200 Slant Bed Lathe


Machine Standard Features

  • 15/20Hp 11/15 Kw Fanuc AC Spindle Motor
  • Automatic Lubrication System
  • Single Range Variable Speed Motor
  • Spindle Speed 4,500 RPM
  • Fanuc 0i Mate TC Control
  • 8” Three Jaw Tonfou Hydraulic Chuck
  • 10 Stations Hydraulic Turret (5 O.D /5 I.D)
  • Axis Overload Protection
  • High Precision Linear Guide-ways
  • Tailstock With Programmable Quill
  • Heavy Duty Cast Iron Base, Saddle & Headstock
  • Tool Kit & Work-light
  • Coolant System
  • Roll-out Coolant Tank
  • One Year Machine Parts Warranty
  • Two Year Control Warranty



Specifications

ITEM

SL-200

Work Capacity

Swing over bed

Ø 480 (Ø 18.9)

Swing over side

Ø 321 (Ø 12.6)

Max. machining diameter × length

Ø 210 × 508 (Ø 7.9 × 20)

Machine Body

Slant angle of bed

45 °

Max. travel range of Z/X-axis

520 / 176 (20.5 / 6.9)

Servo motor of Z/X-axis

1.8 / 1.8 kW

Rapid traverse rate of Z/X-axis

30 / 30 m /min (1181 / 1181 ipm)

Spindle

Diameter of spindle front bearing bore

Ø 100 (Ø 3.9)

Diameter of spindle bore/Draw bar bore

Ø 62 / Ø 51 (Ø2.4 / Ø2)

Spindle nose type

ASA A2-6

Taper of spindle bore

1/20

Spindle motor

11/15 kW (14.7 / 20 HP)

Spindle speed

STD: 4500 rpm

Diameter of chuck

STD: 8” hydraulic

Tools Turret

Type

Vertical

Tool capacity

10 pcs

Tool shank post

25 × 25 (1 × 1)

Boring diameter post

Ø 40 / 5 pcs (Ø1 1/4/ 5 pcs)

Radial tool post -
Axial tool post -
Dual tool post -

Hydraulic Tailstock

Quill diameter

Ø 65 (Ø2.56)

Tailstock travel

425 (16.7)

Center type

Live

Quill taper

MT No. 4

Quill stroke

50 (1.79)

Drive Motor

Coolant motor

960 W

Hydraulic motor

745 W (1 HP)

Chip conveyor motor

215 W (1/4HP)

Accuracy
Positioning (z/x) ±0.005
Repeatability (z/x) ±0.002

Miscellaneous

Power requirement

208-220 Volts / 15 KVA / 50 Amps

Height from floor to spindle center

900 (35.4)

Height from bed to spindle center 290 (11.4)

Floor area (W × D × H)

2778 × 2230 × 1690 (109 × 88 × 67)

Packing Dimension (W × D × H)

2930 × 2270 × 1740 (115 × 89 × 69)

Net weight (ind. chip conveyor)

2900 kg (6380 Ibs)

Gross weight (incl. chip conveyor)

3120 kg (6864 Ibs)

*Specifications are subject to change without notice
