| CL-22/CL-19 Series - CL-19/CL-22 |

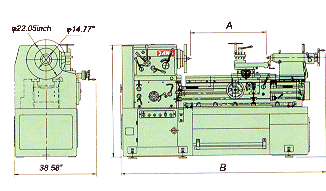

CL22/CL19 - Inch Model Dimension:

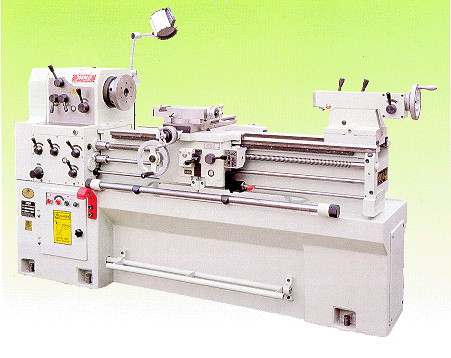

| See A & B size from above machine picture |
|
Metric Model Name
(Inch Model Name)
|
A size
|
B - size |
|
CL 5685,5685G / 4885,4885G
(CL2233G/CL1933G)
|
850mm =33.47 inch |
2155mm = 84.84 inch |
|
CL 56150,56150G / 48150,48150G
(CL2260G/CL1960G)
|
1500mm = 59.06" |
2805mm = 110.43" |
|
CL 56200,56200G / 48200,48200G
(CL2280G/CL1980G)
|
2000mm = 78.74" |
3340mm = 131.50" |
|
CL 56250,56250G / 48250,48250G
(CL22100G/CL19100G)
|
2500mm = 98.43" |
3840mm = 151.18" |
Product Specifications:
|
ITEM
|
SPECIFICATIONS / MODEL
|
5685
4885
5685G
4885G
(33G)
|
56150
48150
56150G 48150G
(60G)
|
56200
48200
56200G 48200G
(80G)
|
56250 48250
56250G 48250G
(100G)
|
|
SWING
AND
DISTANCE
|
Swing over bed
|
560 type
(CL22)
|
φ560mm = φ22.05inch
|
|
480 type
(CL19)
|
φ480mm = φ18.90"
|
|
Swing over bed
Cross slide
|
560 type
(CL22)
|
φ375mm = φ14.77"
|
|
480 type
(CL19)
|
φ300mm= φ11.81"
|
|
Swing over gap
|
560 type
(CL22)
|
φ745mm = φ29.33"
|
|
480 type
(CL19)
|
φ665mm = φ26.18"
|
|
Width of gap from face plate
|
A1-6:270 ; D1-6:255
|
|
Distance between centers
|
850mm
33.47inch
|
1500mm
59.06"
|
2000mm
78.74"
|
2500mm
98.43"
|
|

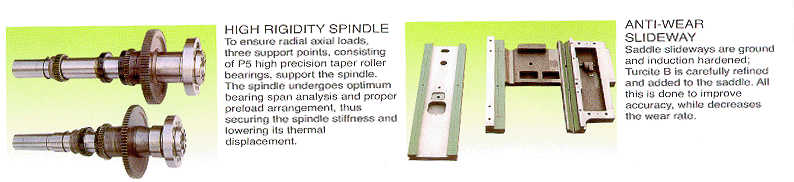

SPINDLE
|
Spindle bore
|
φ58=2.28"
|
|
Spindle nose
|
ASA A1-6(ASA D1-6)Option
|
|
Taper of spindle bore
|
M.T. No.6
|
|
Taper of center
|
M.T. No.4
|
|
Stage of spindle speed
|
12
|
|
Range of spindle
|
560 type
|
25,51,68.93,133,166,237,330,
425,590,840,1500 r.p.m
|
|
480 type
|
32,62,82,112,160,200,285,395
,510,710,1010,1800 r.p.m
|
|
Spindle motor
|
3.75kw(5HP)4p (OPT7.5HP,10HP)
|
5.5kw(5HP)4p (OPT7.5HP,10HP)
|
|
THREADS
CUTTING
RANGE
|
Universal gear box
|
Metric leadscrew
|
Metric teeth(mm)
|
0.25~7
|
|
Inch teeth(T.P.I)
|
4~56
|
|
Inch
leadscrew
|
Metric teeth(mm)
|
0.5~7
|
|
Inch teeth (T.P.I)
|
4~80
|
|
D.P.threads(D.P.)
|
8~112
|
|
Module threads(M.P.)
|
0.5~35
|
|
Metric/
inch
gear box
|
Metric/inch leadscrew
|
Metric teeth(mm)
|
0.5~14
|
|
Inch teeth(T.P.I)
|
2~56
|
|
D.P.threads(D.P.)
|
4~112
|
|
Module threads(M.P.)
|
0.25~7
|
|
FEED
RANGE
|
Universal
gear box
|
Longitudinal
feed range
|
Metric teeth
(mm)
|
0.045~0.627
|
|
Inch teeth
(T.P.I)
|
0.0018~0.025
|
|
Inch leadscrew
in bed
(mm)
|
0.045~0.627
|
|
Cross feed range
|
Metric teeth
(mm)
|
0.045~0.627
|
|
Inch teeth
(T.P.I)
|
0.0010~0.0154
|
|
Inch leadscrew
in bed(mm)
|
0.045~0.627
|
|
Number of feed change
|
32
|
|
Metric/
inch
/gear box
|
Metric/
inch leadscrew
|
Longitudinal mm
(inch)
|
Metric leadscrew:0.030~0.937
(Inch leadscrew:0.0007~0.316)
|
|
Cross mm(inch)
|
Metric leadscrew:0.030~0.937
(Inch leadscrew:0.0007~0.316)
|
|
Inch leadscrew
in bed
|
Longitudinal mm
(inch)
|
0.029~0.885
|
|
Cross mm
(inch)
|
0.029~0.885
|
|
Number of feed change
|
100
|
|
LEADSCREW
|
φ38(4.T.P or 6mm)
|
|

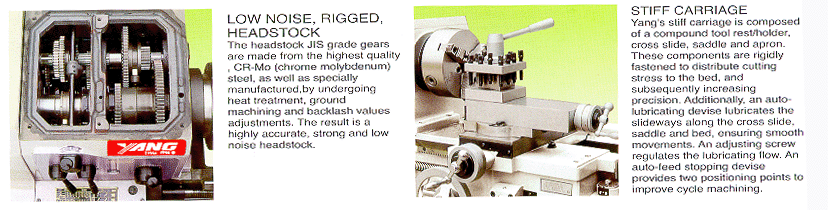

TOOL SLIDE
|
Compound rest travel
|
150mm = 5.91"
|
|
Cross slide travel
|
265mm = 10.43"
|
|
Carriage travel
|
760mm
29.92"
|
1560mm
61.42"
|
1970mm
77.56"
|
2470mm
97.24
|
|

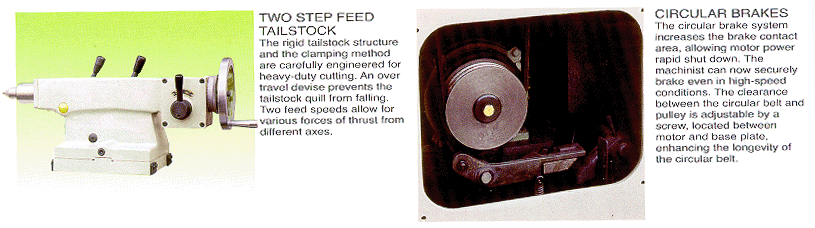

TALSTOCK
|
Diameter of quill
|
φ65mm = 2.56"
|
|
Quill travel
|
150mm = 5.91"
|
|
Taper of center
|
M.T No.4
|
|
BED
|
Length mm
|
1880mm
74.02"
|
2450mm
96.46"
|
3040mm
119.69"
|
3540mm
139.37"
|
|
Width mm
|
350mm = 13.78"
|
|
GENERAL
|
Floor space (L×W) mm (inch)
|
2155 (84.84")
x980 (38.58")
|
2805 (110.43")
x980 (38.58")
|
3340 (131.50")
x980 (38.58")
|
3840 (151.18")
x980 (38.58")
|
|
Packing size (L×W×H) mm (inch)
|
2280 (90")
x1020 (40")
x1570 (62")
|
3170 (125")
x1020 (40")
x1570 (62")
|
3630 (143")
x1020 (40")
x1570 (62")
|
4240 (167")
x1020 (40")
x1570 (62")
|
|
Net weight (approx.)kgs
|
1850 kgs
4070 lbs
|
2100 kgs
4620 lbs
|
2200 kgs
4840 lbs
|
2300 kgs
5070 lbs
|
|
Gross weight (approx.)kgs
|
2050
4510 lbs
|
2400
5290lbs
|
2550
5610 lbs
|
2700
5950 lbs
|
|
Specifications are subject to change without notice for further design improvement.
|
Product Accessories:
| STANDARD ACCESSORIES |
|
ITEM
|
CL560/480
(CL22/19)
|
|
Driving plate
|
250mm = 9.84" 1PC
|
|
Change gears
|
72T 1PC
|
|
Worm gear(metric lead screw)
|
21T&22T 1PC
|
|
Center
|
M.T No.4 1PC
|
|
Cooling equipment
|
1set
|
|
Leveling pads
|
1set
|
|
Tool kits
|
1set
|
| OPTIONAL ACCESSORIES |
|
ITEM
|
CL560/480
(CL22/19)
|
|
Steady rest
|
ψ20~ψ200mm = ψ0.78"~7.87" 1set
|
|
Follow rest
|
ψ20~ψ90mm = ψ0.78" ~3.54" 1set
|
|
Face plate(mm)
|
560/400 = 22.05"/15.75"
|
|
Three-jaw scroll chuck
|
1set
|
|
Four-jaw independent chuck
|
1set
|
|
Taper attachment
|
1set
|
|
Rear tool holder
|
1set
|
|
Micro carriage stop
|
1set
|
|
Splash guard
|
1set
|
|
Multi pole motor
|
1set
|
|
Work lamp
|
1set
|
|
Center & center sleeve
|
1set
|
|

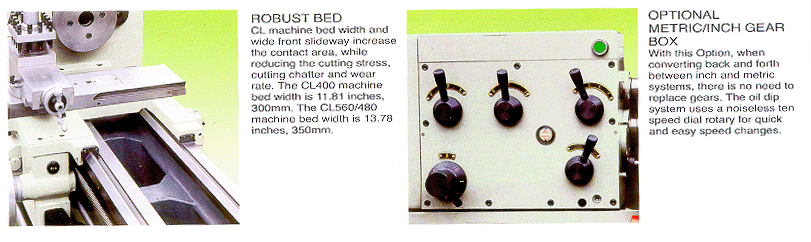

Metric(Inch) gear box
|
1set
|
|
Metric(Inch) cutting gread indicator
(Only in inch leadscrew)
|
1set
|
|
Specifications are subject to change without notice for further design improvement.
|
